Medical Equipment Flexible PCB High Quality Double Side FPC Board
Reliable Flexible Printed Circuit Board Manufacturer: Our Offerings
As the name suggests, flexible printed circuit boards are arrangement of components and printed circuitry made from flexible materials. These PCBs are also referred as flex circuits or flexible circuits. Flexible circuit boards comprise of metallic layer of traces, which are bonded to a dielectric layer. Shinelink company is one of the leading flex PCB manufacturers, and we can provide you flexible circuits in a wide range of capabilities and specifications.
Different Types of Flexible PCBs Provided by Shinelink company
We provide flexible circuits of different types, based on the application requirements. Here are some basic types of flex circuit boards that are available with us:
-
Single Sided Circuits: As the name suggests, these types of flex circuits have metal traces only on one side of the dielectric layer.
-
Double Sided Circuits: The double sided flexible printed circuit boards are made up of metal layers on both the sides of the dielectric layer.
-
Multi-layer Circuits: Multi-layer flexible PCBs are made up of several metal (copper) layers, which are separated by the dielectric layers.
Flexible PCB Capabilities of Shinelink company
We provide a huge variety of flexible circuit boards.
You can select the one that best suits your requirements. To ease your selection a bit, here are the capabilities of flex circuit boards available with us:
| Standard Panel Size | 18″x24″ |
| Copper Thickness | 0.5 oz. To 6.0 oz. |
| Board Thickness | 0.5mm~3.0mm (0.02″~0.12″) |
| Minimum Height | 35 mil (0.89 mm) |
| Minimum Width | 8 mil (0.20 mm) |
| Solder Mask | White, Black, Blue, Green, Red |
| Legend/Silkscreen Color | Black, White |
| Surface Finishing | Immersion Gold, HASL, OSP |
| Layer | 1-20 Layers |
| Standards | MIL-PRF-55110, MIL-PRF-50884, MIL-PRF-31032 UL94V.0, IPC-6012,6013, ISO-9001, AS910 |
| Turnaround Times | Single-sided: 24 to 48 hours
Double-sided: 24 to 48 hours
Multilayers: 1 to 5 days |
| Minimum Drill (Mechanical) Hole Diameter | .008″ (0.2 mm) |
| Minimum Micro Via (Laser) Size | 3 mil (0.07 mm) |
| Minimum Via (Laser) Size | 5 mil (0.15 mm) |
| Shielding Material | Copper, Silver Ink, Tatsuta, Carbon |
FPCB Photos
Product Tags:
|
|

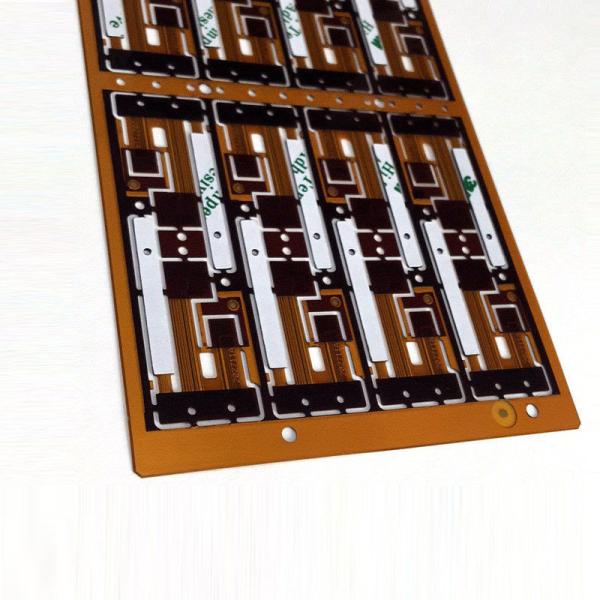

Medical Equipment Flexible Printed Circuit Board Double Side Metal Layers Images
|
